Description

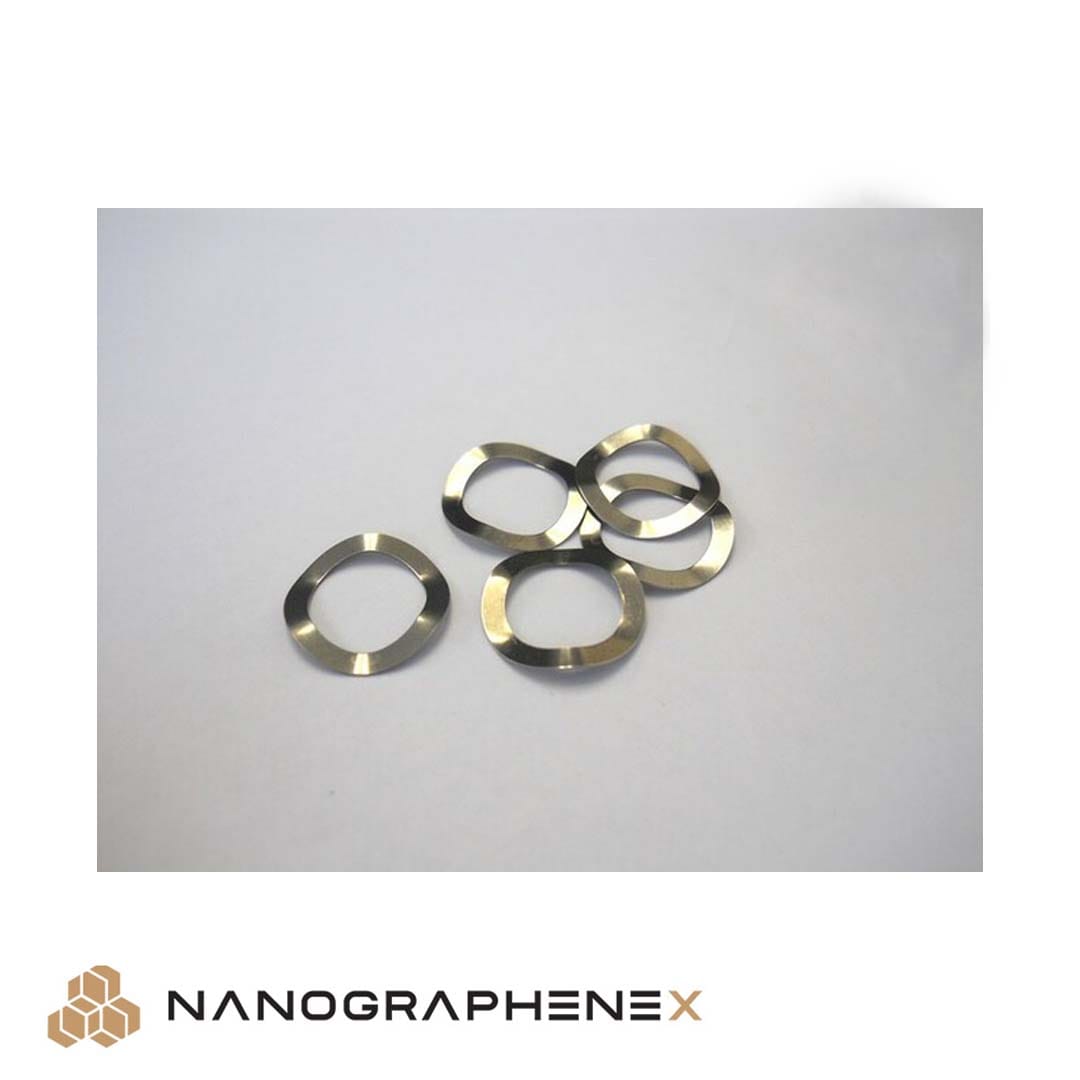

304 Stainless Steel Wave Spring (Belleville Washers) for CR2032, Diameter: 15.4 mm, Thickness: 0.2 mm, Height: (1.2±0.03) mm
Product Description:
This 304 Stainless Steel Wave Spring, also known as a Belleville Washer, is specifically designed for use with CR2032 coin cells. Made from high-quality 304 stainless steel, it offers excellent corrosion resistance, reliable mechanical performance, and consistent dimensional tolerance. Wave springs help ensure proper contact pressure within the battery casing, making them essential components in coin cell assembly, especially in battery research and development applications.
Technical Properties:
| Property | Value |
|---|---|
| Material | 304 Stainless Steel (304SS) |
| Diameter | 15.4 mm |
| Height | (1.2 ± 0.03) mm |
| Thickness | 0.2 mm |
| Weight | 2.83 grams |
Applications:
Ideal for battery research, the 304 Stainless Steel Wave Spring (Belleville Washer) is primarily used in the assembly of CR2032 coin cells. It ensures optimal internal pressure, maintaining electrical contact between components while accommodating thermal expansion and mechanical stress. Perfect for R&D labs, battery prototyping, and custom energy storage projects.
