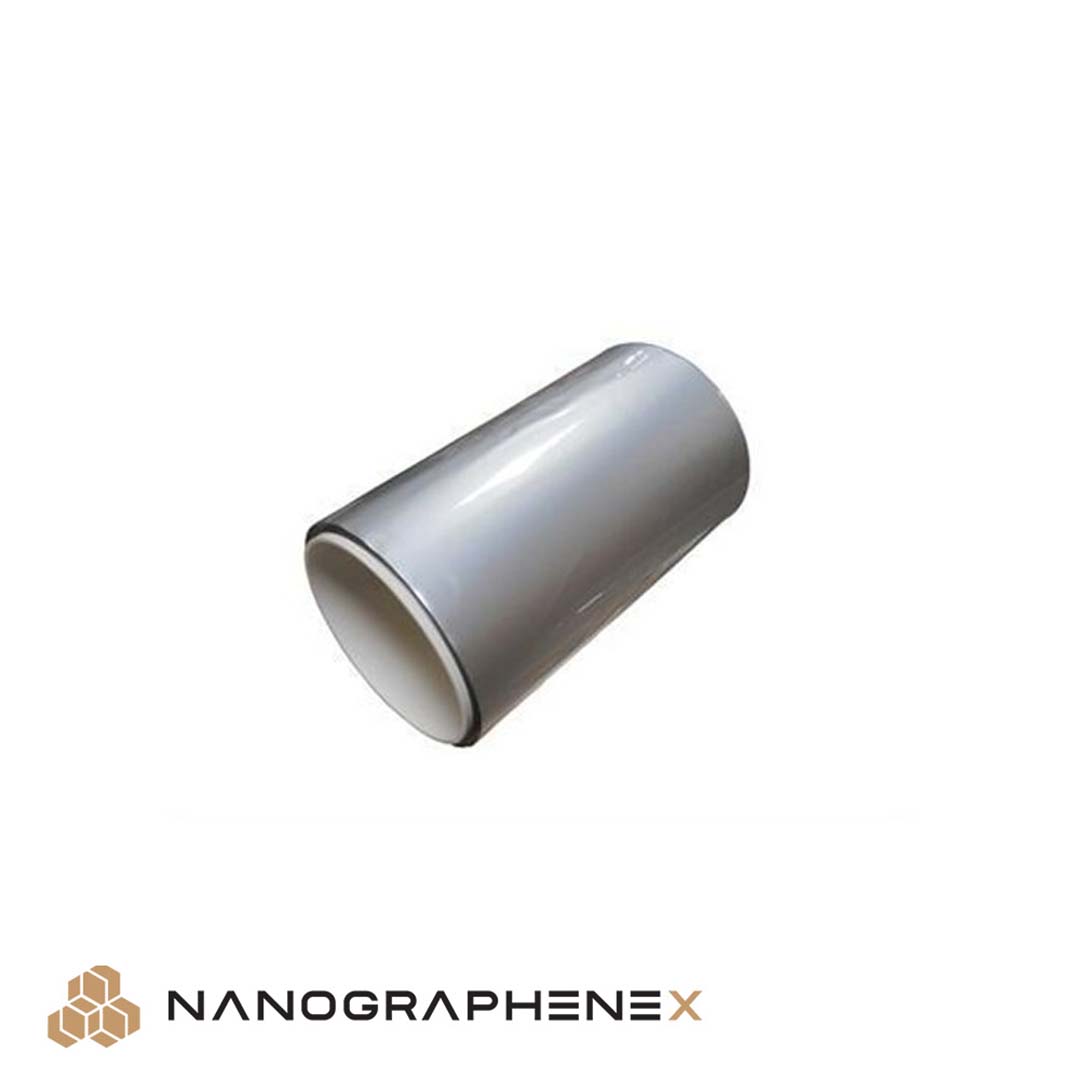

Aluminum Laminated Film for Pouch Cell Case – Width: 400 mm, Length: 7.5 m
This aluminum laminated film (115 μm thickness) is specifically designed for use as a protective and structural casing material in polymer lithium-ion pouch cells. With its multi-layer construction—consisting of polyamide, aluminum foil, and polypropylene—this film offers excellent barrier properties against moisture, oxygen, and chemicals while maintaining flexibility, mechanical durability, and dimensional stability. It is an essential material for high-energy-density battery packaging in both R&D and industrial-scale cell production.
Technical Properties:
| Component | Specification |
|---|---|
| Polyamide (JIS Z1714) | 0.025 mm ± 0.0025 mm |
| Adhesive (Polyester-polyurethane) | 4–5 g/m² |
| Aluminum Foil (JIS A8079, A8021) | 0.040 mm ± 0.004 mm |
| Adhesive (Urethane-free) | 2–3 g/m² |
| Polypropylene | 0.040 mm ± 0.004 mm |
| Total Thickness | 115 μm ± 5 μm |
| Width | 400 mm |
| Length | 7.5 m |
| Surface Quality | Mat finish |
| Pinholes | Conforms to aluminum foil standard |
| Impurity Tolerance | ≤ 1 mm in diameter |
| Fish Eye (Clear) | ≤ 2 mm in diameter |
| Fish Eye (Colored) | ≤ 1 mm in diameter |
Applications:
-
Casing material for polymer lithium-ion pouch cells
-
Suitable for energy storage systems, consumer electronics, EV battery packs, and battery R&D
-
Used in cell prototyping and pilot-scale pouch cell manufacturing
Additional information
| Set | 1 set, 5 sets, 25 sets |
|---|
