Description

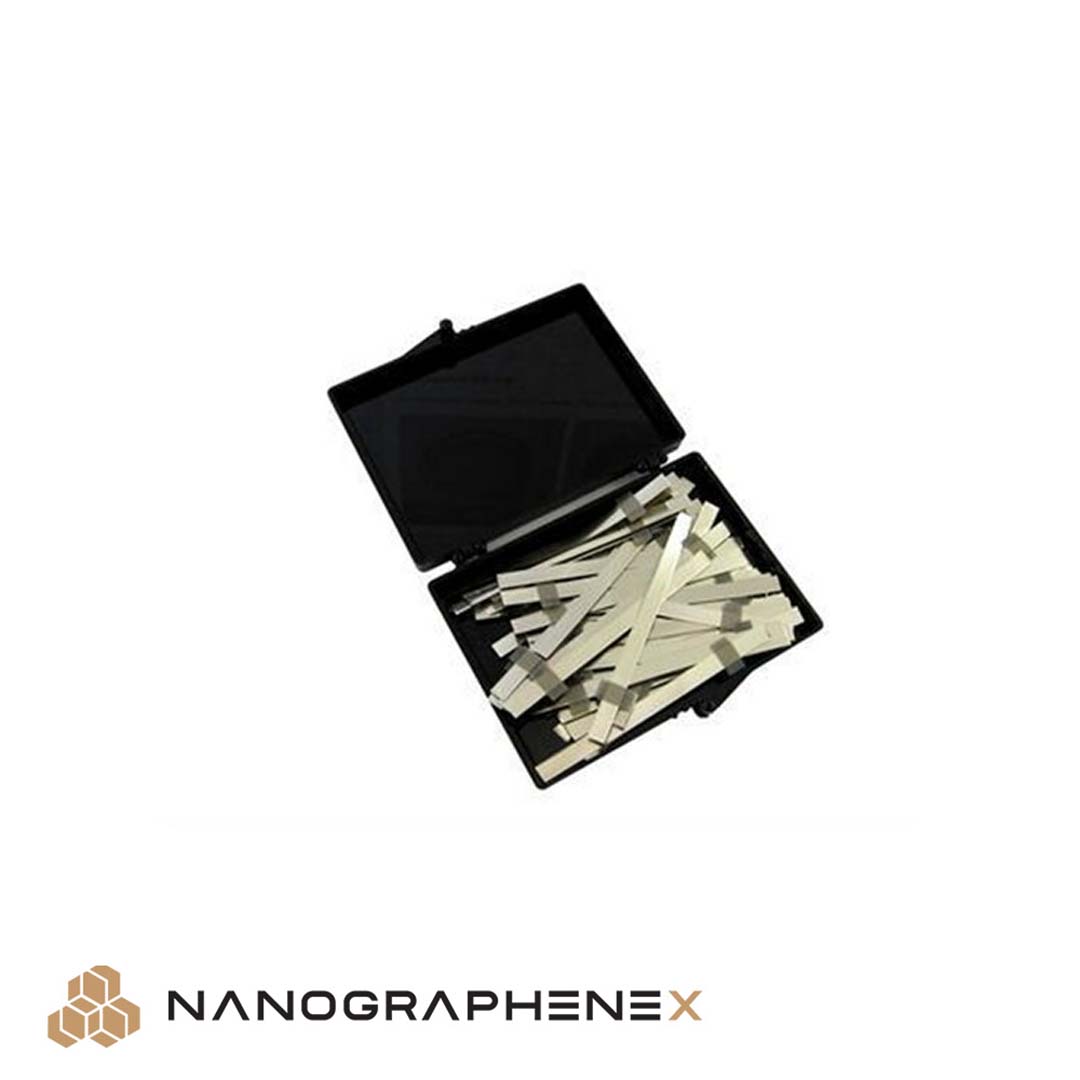

Nickel Tabs with Adhesive Polymer Tape – Width: 3 mm
Our 3 mm Nickel Tabs with adhesive polymer tape are specifically designed for use as current collector terminals in polymer lithium-ion pouch cells. Made from 99.99% pure nickel, these tabs offer exceptional electrical and thermal conductivity, and the pre-applied adhesive polymer layer enables immediate hot sealing, simplifying cell assembly and improving manufacturing efficiency.
Technical Specifications
| Property | Value |
|---|---|
| Material | Nickel 99.99% + Adhesive Polymer Tape |
| Length | 50 mm |
| Width | 3 mm |
| Thickness | 0.09 mm |
| Max. Loading Current | 3 A |
| Net Weight | 128 mg/pcs |
Recommended Heat Sealing Parameters
Note: Parameters may vary depending on pouch design.
-
Blade Type: Soft blade (rubber-coated)
-
Upper Blade Temperature: 180–200 °C
-
Lower Blade Temperature: 160–180 °C
-
Pressure: 40 PSI (0.3 MPa)
-
Heating Time: 3 seconds
Applications
-
Serves as a positive terminal connection to the cathode current collector in Li-ion polymer batteries
-
Pre-attached adhesive polymer film allows for fast and reliable sealing
-
Ideal for custom battery development, energy storage systems, power tools, and e-mobility devices
-
Ensures excellent current transfer, low contact resistance, and enhanced safety performance
