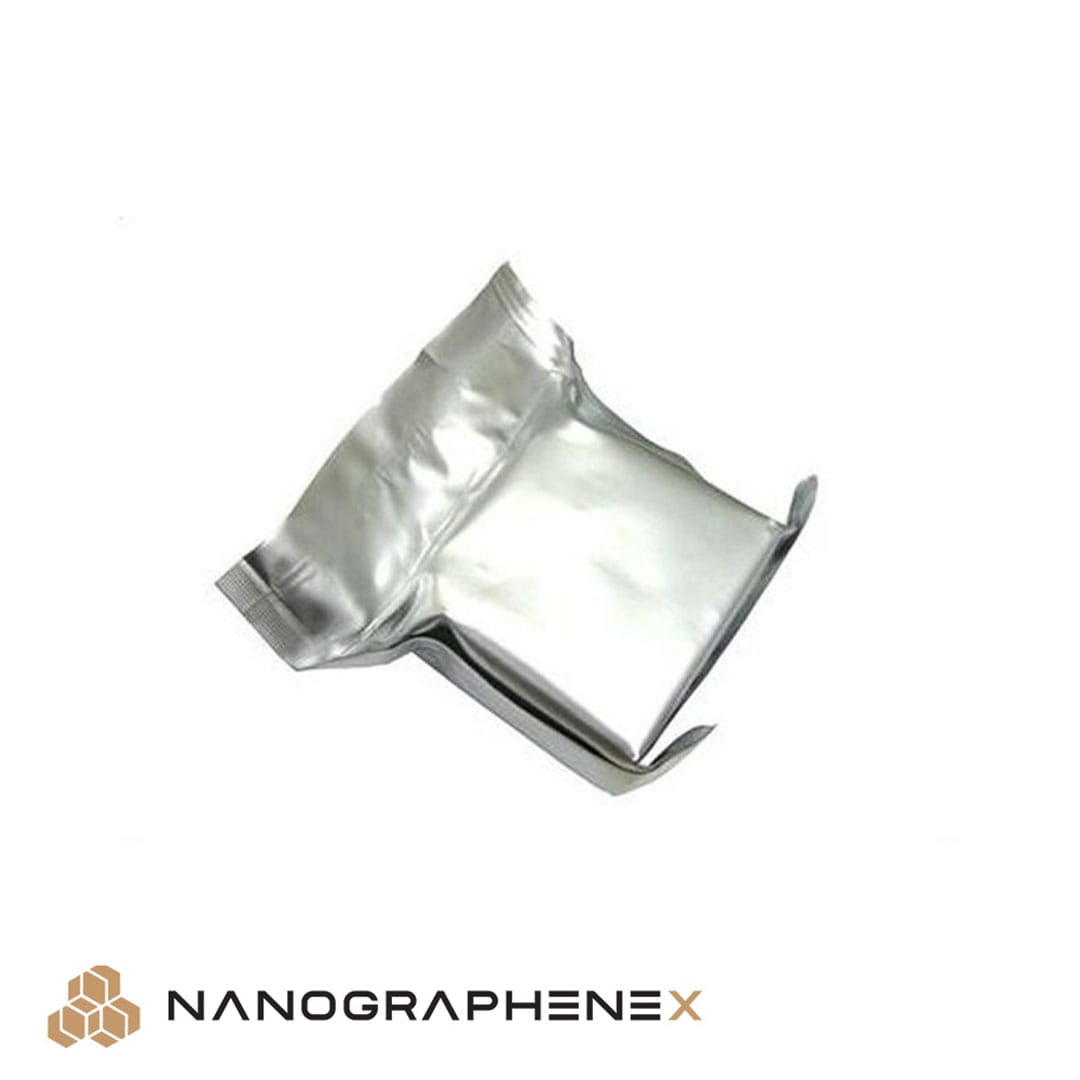

PVDF Binder for Li-ion Battery Electrodes – ≥99.5% Purity
Our Polyvinylidene Fluoride (PVDF) Binder is a high-purity white powder specifically designed for lithium-ion battery electrodes. With a purity of ≥99.5% and excellent binding properties, it ensures optimal adhesion of the active material to the current collector, contributing to long-term battery stability and enhanced performance.
PVDF exhibits outstanding electrochemical and thermal stability, high dielectric constant, and good solubility in common solvents like NMP (N-Methyl-2-pyrrolidone). These characteristics make it ideal for both cathode and anode slurry formulations in Li-ion battery manufacturing.
Beyond energy storage, PVDF also finds use in plumbing systems, water filtration membranes, architectural coatings, and renewable energy components due to its chemical resistance and mechanical durability.
Technical Properties
Technical Parameter | Unit | Value / Index | Testing Method |
---|---|---|---|
Shape | – | White Powder | – |
Purity | % | ≥99.5 | – |
Specific Gravity | – | 1.74–1.77 | ASTM D792 @23/23 °C |
Dielectric Constant | 100 MHz / 100 Hz | 4.50–5.50 / 8.00–9.50 | ASTM D150 |
Melting Point | ℃ | 160–168 | ASTM D3418 |
Melt Flow Index (MFI) | g/10min | 1–2 | – |
Solubility in NMP | – | Transparent and dissolvable (30 °C, 1 hr) | 1 g/10 ml NMP |
Rotational Viscosity | mPa·s | ≥2000 | 1 g/10 ml NMP |
Intrinsic Viscosity | dL/g | 1.0–2.0 | DMA, 30 °C |
Moisture Content | % | ≤0.1 | Karl Fischer |
Molecular Weight | – | ~600,000 | ASTM D5296-05 |
Applications
-
Lithium-ion battery electrode fabrication (both cathode & anode)
-
Binder in PVDF/NMP slurry formulation
-
Energy storage devices requiring mechanical and electrochemical stability
-
Membrane manufacturing for water purification
-
Architectural coatings, pipes, and renewable energy systems
This premium-grade PVDF binder offers excellent mechanical strength, consistent slurry performance, and superior dispersion characteristics — making it a top choice for high-performance battery manufacturing.
