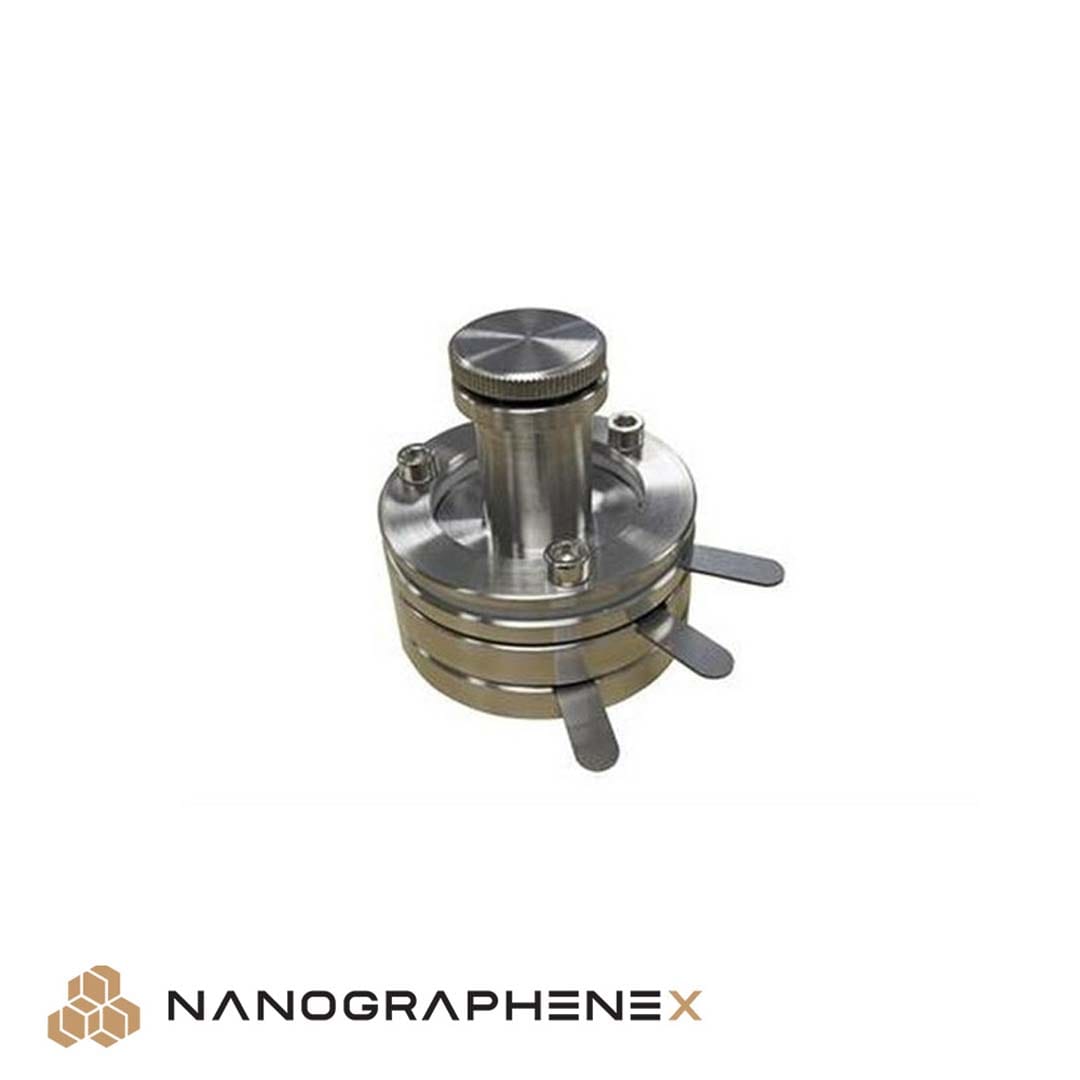

Stainless Steel Three-Electrode Split Test Cell
For Rechargeable Battery R&D – Tool-Free Assembly, Reusable, and Glovebox Compatible
The Stainless Steel Three-Electrode Split Test Cell from NanographeneX is a precision-engineered electrochemical cell designed for laboratory-scale testing and development of rechargeable battery materials. Its modular, screw-type design allows easy assembly/disassembly without the need for crimping, making it especially useful for fast prototyping, academic research, or repetitive cycling tests.
Engineered with PTFE components for chemical resistance and built from corrosion-resistant stainless steel, this test cell supports electrode discs of 15 mm diameter and separator discs of 24 mm diameter. It accommodates three-electrode configurations, enabling more accurate monitoring of potential and current in advanced battery studies.
Technical Properties:
| Property | Specification |
|---|---|
| Cell Body Material | Stainless Steel |
| Electrode Disc Diameter | 15 mm |
| Separator Disc Diameter | 24 mm |
| Sealing Material | PTFE O-rings (electrolyte-resistant) |
| Guide Sleeve | PTFE, rated up to 250 °C |
| Spring Tension Adjustment | Yes – accommodates various electrode thickness |
| Reusability | Fully reusable and easy to clean |
| Glovebox Compatibility | Yes – compact and portable |
Key Features:
-
Designed for three-electrode battery measurements
-
Tool-free design – no crimping required
-
Excellent chemical and thermal resistance
-
Quick disassembly for electrode inspection
-
Ideal for Li-ion, Na-ion, and experimental battery systems
Applications:
Perfect for researchers and developers working on new battery chemistries, electrode optimization, solid electrolytes, and cycle testing, this split test cell supports versatile configurations and clean removal of components for post-test analysis.
